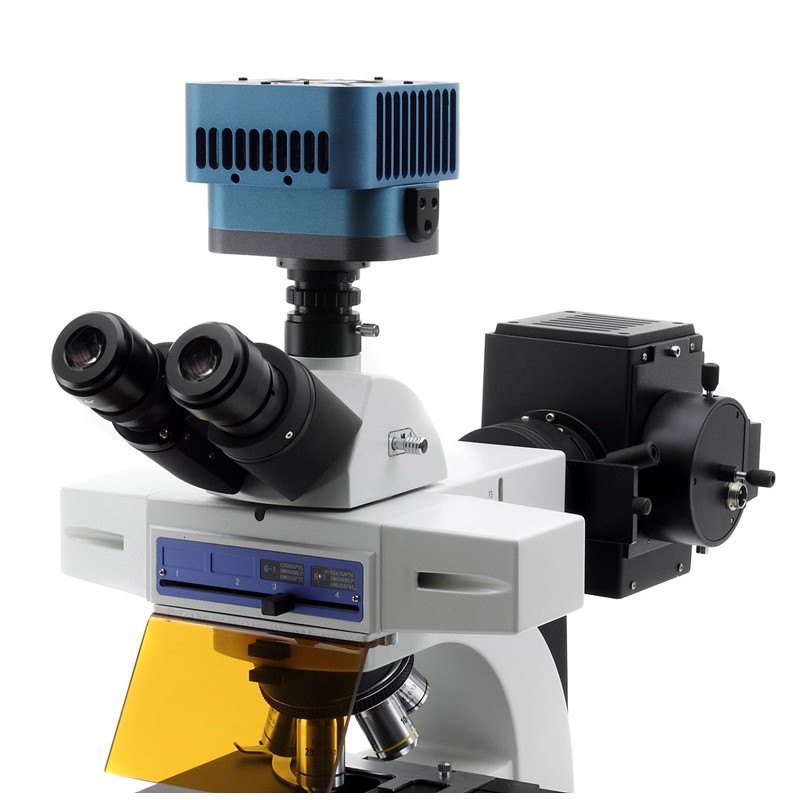

OPTIKAM Pro Cool 5

CCD chip manufacturer

Sony ICX412AQ

CCD chip model

ICX412AQ

CCD scan mode

 interline TRANSFER

CCD size

1/1.8 inch

Pixels

3.46micron x 3.46micron

G sensitive

455 mV

Resolution

2080H x 1536V

Filter

R, G, B buyer

Lens interface

Standard C-mount

Maximum fps

5 fps (2080 x 1536)
30fps (640 x 480)

Low-speed readout

Yes

A/D conversion

12 bit

Peltier cooled

- 30° below ambient

Fan

30x30/5000rpm

Power supply

5V exterior power supply

Exposure control

automatic、manual

Exposure time

1ms-60minute

Angle light control

Yes

White balance

automatic、manual

Parameter

image size、bright、gain、exposure、RGB

Data interface

USB2.0/480Mb/s

USB cable

2.5meter

USB power supply

USB2.0

Dimension

100mm*81mm*48mm

(HXBXT)

Weight

480g

Operational temperature

0-60°

Operational humidity

45%-85%

Storage temperature

-20-70°

TCC-3.3ICE-N digital camera

（standard C-mount、2.5 meter USB cable、peltier cooled cable）

1

Peltier cooled power supply

1

Driver、 software CD

1

Manual

1

Certification

1
