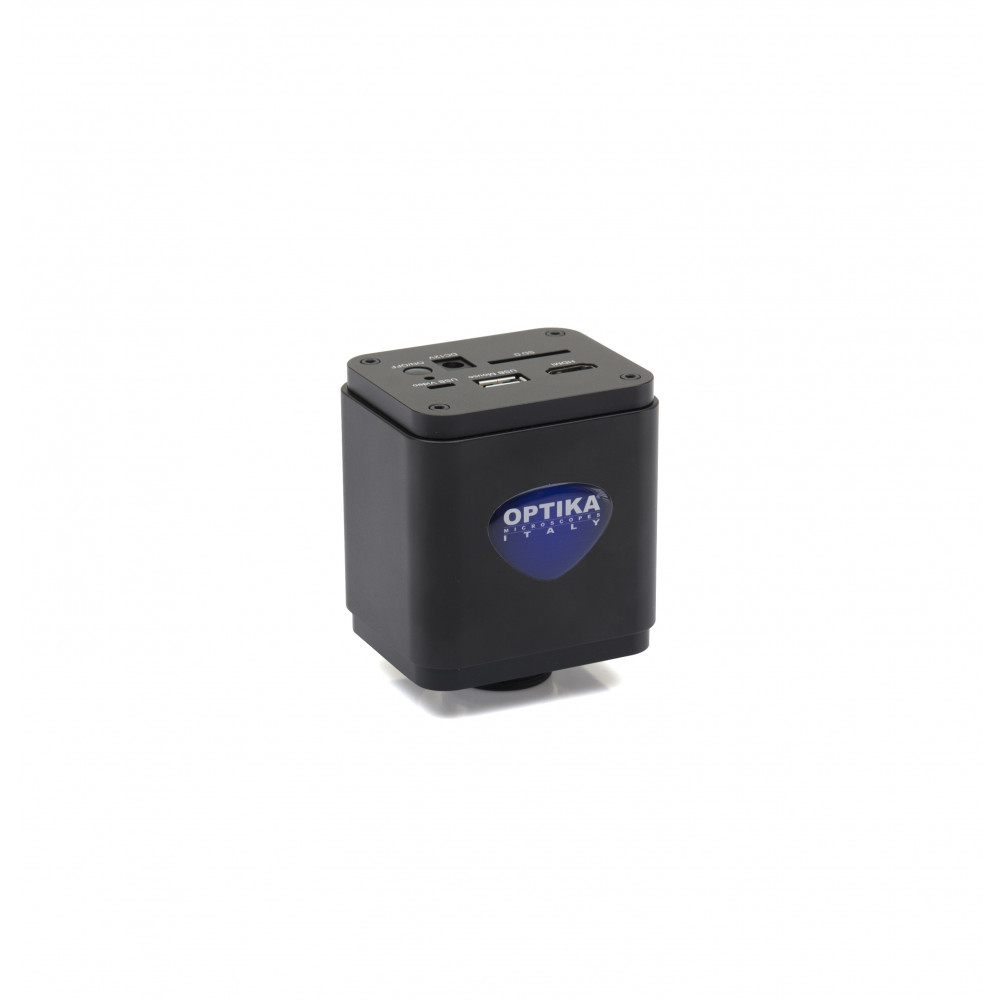

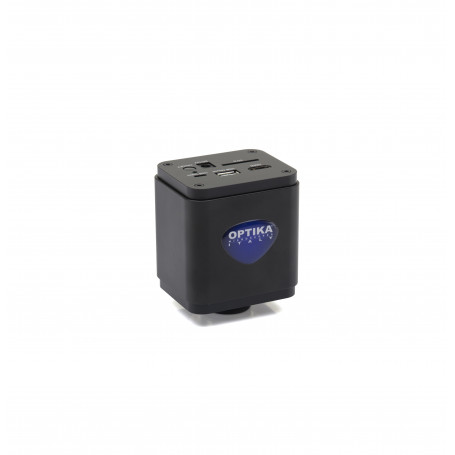

C-HP4 CAMARA OPTIKAM HDMI PC-TV

8Mp 4K Full HD C-mount Microscope Camerascope

General specifications

 SD Card Still image capture Yes SD Card Video recording Yes USB output Yes HDMI output Yes C-Mount Yes Dimensions (mm) 65 x 78 x 88 Weight (kg) 0.5

Sensor: Camera resolution (n° of pixels: W x H) 3840 x 2160 Color / Monochrome Color Sensor Size 1/1.8" Sensor Technology CMOS Sensor Type SONY Image Format 16/9 Pixel Size (mm) 2.0x2.0 Acquisition technology Rolling shutter Dynamic range (DB) 66 G sensitivity 505mV at 1/30s Dark Signal 0.13mV at 1/30s ADC conversion 8 Bit - 12Bit Color Depth 1, 4, 8, 24 Bit Exposure time 0.04 msec- 2 sec Binning 1x1 IR filter Yes IR filter range (nm) 380-650 (IR CUT)

USB: PC Camera resolution (MP) 8 USB standard USB2.0 Frame rate full resolution (fps) 20@3840x2160

HDMI: HDMI resolution (MP) 8 Frame rate full resolution (fps) 30@3840x2160 Live HDMI measurement Yes Exposure Auto / Manual White Balance Auto / Manual / ROI

Camera Power Supply: Type External Connector Jack, 2.1 mm Power plug type Multiplug (EU, UK, US) Input voltage 100/240 Vac, 50/60Hz Output voltage 12 Vdc, 1000 mA LED indicator

Camera accessories: Yes Calibration slide Yes USB cable (1.8m) Yes HDMI cable (1.5m) Yes Wireless Mouse Yes 16GB SD card Yes

Environment: Working Temperature -10°C up to +50°C Storage Temperature -20°C up to +60°C Relative Humidity 30% to 80% Storage Humidity 10% to 60%

Operating System: OS Windows 7 OS Windows 8 OS Windows 10 (32Bit) OS Windows 10 (64Bit)

Available Software: PC SW PROVIEW Camera SW LITEVIEW (built-in)

PC requirements: PC CPU: Intel Core2 - 2.8GHz or higher PC RAM: 2GB or more PC USB 2.0

General HDMILITE SW Specifications: Archiving Yes Multi-language menu Yes Available languages Chinese Yes English Yes French Yes German Yes Italian Yes Japanese Yes Korean Yes Russian Yes Thai Yes

Image Acquisition: Still image mutliple format saving Yes Video recordiing mutliple format saving Yes Continuous automatic exposure Yes Manual exposure Yes Color acquisition Yes Gray-scale acquisition Yes Numerical Focus Indicator Yes White Balance Auto/Manual/ROI Image enhancement Yes Zoom in Yes Zoom out Yes Image Comparison Yes HDMILITE SW Specifications General Image Acquisition Available Software PC requirements Camera Power Supply Camera accessories Environment Operating System Browse of Images and Video Yes Picture in Picture (PIP) Yes Freeze image Yes Horizontal Flip Yes Verical Flip Yes

Image Processing: HDR (High Dynamic Range) Yes Text Overlay Yes Ruler Overlay Yes Arrow Overlay Yes Measurement Overlay Yes Grids Yes

Measurements: Live measurement Yes Still image measurement Yes Select measurement unit Yes Available measurements Line Yes Angle Yes Parallel lines Yes Rectangle Yes Ellipse Yes Circle Yes Annulus Yes Curve Yes Arc Yes Polygon Yes Export to Excel Yes
